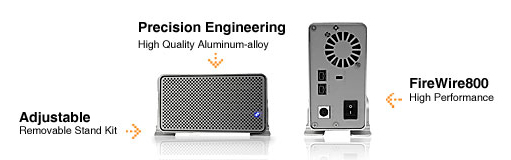

The " METALLICA" MP382S - Dual 3.5" Hard Drive External Data Storage Enclosure


  Features

  • All Aluminum constructed, No plastic inside.
  • Lead edge mechanical designed for easy installation and maintaining.
  • Strong external power adapter and work on any PC or Macintosh.
  • Plug and Play, Hot swappable.
  • USB2.0, IEEE1394a/FW400, IEEE1394b/FW800, eSATA3.0G optional.
  • 2.0TG Hard Drive availabe.






  Technical features
  Drive type : 3.5" SATA Hard Disk Drive enclosure.
  Dimension : 190 x 118x 65 mm
  Construction : All Aluminum constructed, ( Aluminum cover, front panel, Metal chassis.
  Power Input : Universal Input 100~240VAC 50/60 Hz
  Power output : 34W 5V/2A, 12V/2A, or 51W 5V/3A, 12V/3A Dual output Switching Power adapter
  Performance : USB V2.0 interface speed 480Mbps,
  ( data transfer rate up to 26M bytes/sec.)
  : IEEE-1394a/FireWire 400 interface speed 400Mbps,
    ( data transfer rate up to 42M bytes/sec.)
    : IEEE-1394b/FireWire 800 interface speed 800MBs
    ( data transfer rate up to 58M bytes/sec.)
  Power consumption : 3W maximum
  HDD support : SATA I, SATA II, 1TB, 2TB or higher
  Operating Temperature : 0°C ~ 50°C
  Storage Temperature : -20°C to 85°C
  Storage Humility : 8% to 90% RH.
  Cooling : Air convection. or 3x3x1cm DC fan optional
  Packing Accessories : L=1.0M, USB A-B or IEEE-1394 6P-6P extension cable.
  :1394 9P-9P, eSATA I-I CABLES
  : Rubber stand and HDD screws
  Operating Systems : Windows 98SE, Windows ME, Windows 2000, Windows XP, VISTA
  : Mac OS 8.6 and Higher.

  Model Number

  MP382S-U2-JBOD-336 : Dual 3.5" SATA HDD to USB2.0 JBOD JM-20336
  MP382S-U2FWB-R0-934B : Dual 3.5" SATA HDD to USB2.0, FW400, FW800 RAID0, SPANNING, STRIPING
  MP382S-U2FWB-R1-934B : Dual 3.5" SATA HDD to U2,F400,F800, Non-RAID,RAID0 RAID1,Mirror OX934DSB
  MP382S-U2FWBSATA-936DS : DuaL 3.5" SATA HDD to USB2.0, FW400, FW800, eSATA, RAID0,RAID1 OX936DSA
