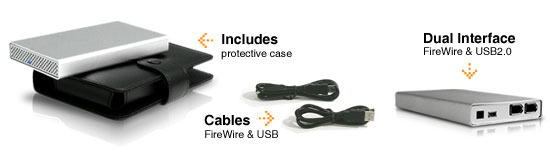

The " METALLICA" MP280S - 2.5" Hard Drive External Data Storage Enclosure


  Features

  • Palm-top design, fast Mobile data storage and backup anywhere.
  • All " Aluminum " constructed, No plastic insdie
  • No need external power adapter and work on any PC or Macintosh.
  • Plug and Play, Hot swappable.
  • Simple installation. Just plug it in and load drive one time.
  • Power On/Off available.
  • Incorporate any standard 2.5" SATA notebook hard disk drive (H=9.5mm/12.5mm).





  Technical features
  Drive type : 2.5" SATA Hard Disk Drive enclosure ( H = 9.5mm/12.5mm )
  Dimension : 134 x 71 x 20 mm
  Construction : Plastic base and cover, Logo printing or metal painting available.
  Power : DC 5V by Bus-Power, Power adapter optional.
  Performance : USB V1.1 interface speed 12Mbps,
  ( data transfer rate up to 980K bytes/sec.)
  : USB V3.1 interface speed 480Mbps,
    ( data transfer rate up to 20M bytes/sec.)
    : IEEE-1394/FirewWire interface speed 400Mbps,
    ( data transfer rate up to 19M bytes/sec.)
  Power consumption : 3W maximum
  HDD support : H=9.5 mm, 5V / 0.55A
  Operating Temperature : 0°C ~ 50°C
  Storage Temperature : -20°C to 85°C
  Storage Humility : 8% to 90% RH.
  Cooling : Air convection.
  Packing Accessories : L=1.0M, USB A-B or IEEE-1394 6P-6P extension cable.
  :1394 9P-9P, eSATA I-I CABLES
  : Rubber stand and HDD screws
  Operating Systems : Windows 98SE, Windows ME, Windows 2000, Windows XP, VISTA
  : Mac OS 8.6 and Higher.

  Model Number
  ( NEW )
  MP280S-USB 31C : 2.5" SATA HDD to USB 3.1 Type C Gen2 10G
  MP280S-U31FWB355 : 2.5" SATA HDD to USB3.1, FW800, On/Off Switch
  MP280S-U31FWBSATA : 2.5" SATA HDD to USB3.0, FW800, eSATA,
  MP280S-U31FWB-934 : 2.5" SATA HDD to USB2.0, FW400,FW800,On/Off Switch OX934
